XP95 Addressable Detectors

The XP95 range of intelligent fire detectors is advanced in design, improved in performance and has unique features that benefit the installer and end user. The range features smoke detectors (ionisation and optical), heat detectors and a multisensor. Beam detectors, flame detectors, manual call points, audio visual signalling devices, interface units and isolators complete the range. XP95 has a ‘central intelligence’ system where all the decisions are made by the control panel.

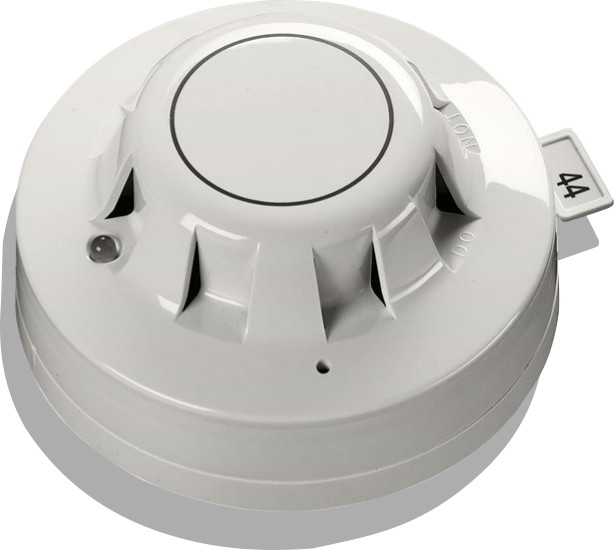

XP95 Optical Smoke Detector

The XP95 Optical Smoke Detector works using the light scatter principle and is ideal for applications where slow-burning or smoldering fires are likely.

Features

Responds well to slow-burning, smouldering fires.
Well suited for bedrooms and escape routes.
Unaffected by wind or atmospheric pressure.

Approvals: EN54-7/LPCB

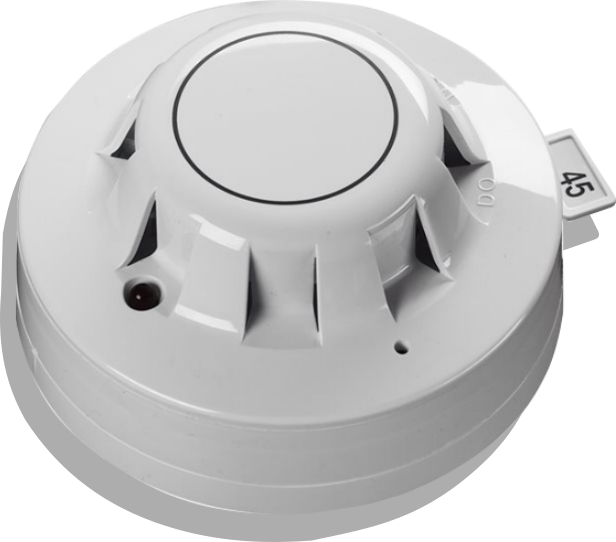

XP95 Ionisation Smoke Detector

The XP95 Ionisation Smoke Detector uses a low activity radioactive foil to detect fires by irradiating the air in the smoke chambers and causing a current flow. If smoke enters the chamber, the current flow is reduced leading to an alarm.

Features

Responds well to fast-burning, flaming fires.
Designed to operate in a variety of environments.
Minimal effects from temperature, humidity, atmospheric pressure.
Well protected against electromagnetic interference over a wide frequency range.

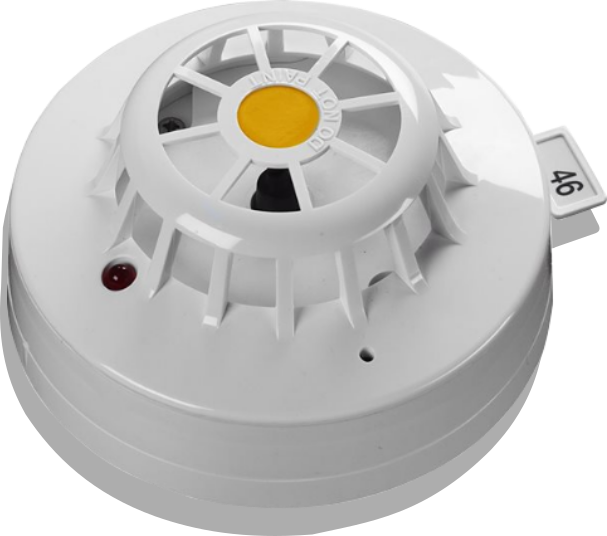

XP95 Heat Detector

The XP95 Heat Detector monitors temperature by using a single thermistor network which provides a count output proportional to the external air temperature. The XP95 range features two Heat Detectors, standard and high temperature. The standard heat detector is classified as an A2S device and will report an alarm at 55°C. The high temperature detector, classified as a CS device, will report an alarm at 90°C.

Features

Ideal in environments that are dirty or smokey under normal conditions.
Well suited for warehouses, loading bays and car parks.
Unaffected by wind or atmospheric pressure.

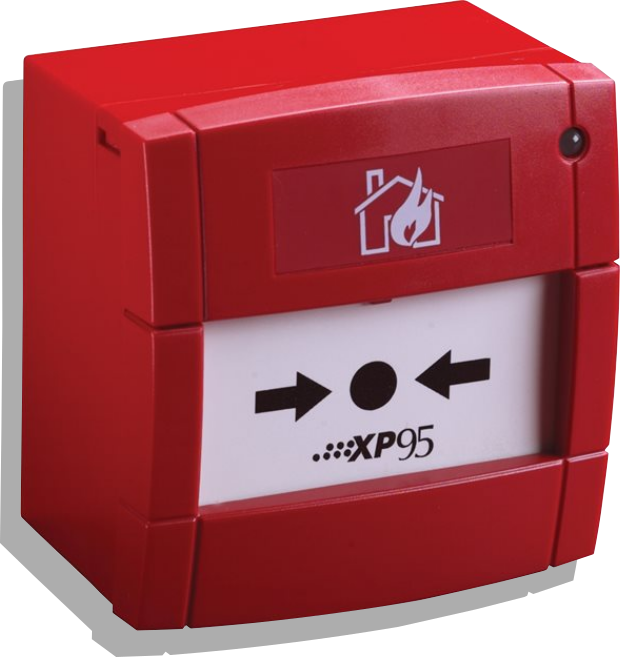

XP95 Manual Call Point

The XP95 Manual Call Point has a highly visible alarm indicator which can be seen from up to 10 metres away. When activated, the manual call point interrupts the polling cycle for a fast response. A combined LED indicator and front reset mechanism allowsfor a quick and simple reset.
